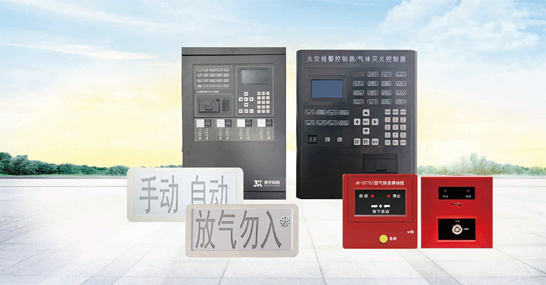

JK761 gas fire extinguishing controller is mainly used for various gas fire extinguishing systems with or without pipeline networks, such as carbon dioxide, heptafluoropropane, trifluoromethane, 1G-541, SDE, etc. It can be connected to address coded smoke and temperature fire detectors, and can also be connected to non coded fire detectors through relay modules for fire alarm; It can be equipped with a bus based manual/automatic switch, gas release alarm, gas start/stop button, and control and detect the status of gas fire extinguishing equipment and related alarm devices through the gas spray control and spray feedback terminals on the internal circuit board; Control selection valves, fire-resistant doors and windows, etc. through modules. It can be widely used in computer rooms, data rooms, distribution rooms, substations, communication stations and other places.
|
Usage environment:
|
Temperature:- 10°C~ +50°C； Humidity: ≤ 95% RH (non condensing)
|
|
AC input voltage:
|
220V ± 10/15%, 50Hz ± 1%
|
|
Communication input power:
|
≤300W
|
|
DC backup power:
|
DC24V/5Ah,Fully sealed maintenance free battery
|
|
Capacity:
|
Zone 4 (optional); Fire alarm circuit capacity ≤ 160 points
|
|
Maximum output current of 24V power supply:
|
3A
|
|
Bus length:
|
≤1500 meters (cross-sectional area 1.5mm²twisted pair)
|
|
External dimensions:
|
Length 410mm x Width 130mm x Height 600mm
|
|
Networking method:
|
CAN networking
|
