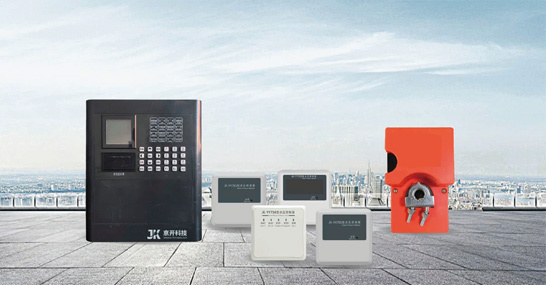

The JK-Y790 residual pressure monitor is a wind pressure measurement system specifically designed for the accurate measurement and control of positive pressure values in the front rooms (including independent front rooms, shared front rooms, and shared front rooms) and stairwells of buildings, as well as in the positive pressure supply systems (i.e. smoke prevention systems in buildings). It ensures that the residual pressure values in the front rooms and stairwells relative to the evacuation corridors are within the range required by national regulations, thereby ensuring that the smoke prevention systems in buildings can function normally without affecting the normal evacuation of personnel.

AC input voltage:	220V士10/15%,50Hz士1%
Communication input power:	≤100W
DC backup power:	DC24V/2.2AhFully sealed maintenance free battery
Loop capacity:	≤128 addressing points
DC24VPower output current:	≤2A
Loop wiring system:	Two bus system (non-polar)
Bus length:	≤1500m (cross-sectional area ≥ 1.0mm² twisted pair)
LCD specifications:	3.03-inch 160x160 dot matrix
External dimensions:	Length 290mm x Width 100mm x Height 348mm

1. Electronic code, unique D; Controller online addressing or encoder address setting, powerful debugging function;
2. Return the pressure at the other end of the residual pressure detector through the intake terminal. The residual pressure detector detects the pressure difference between the indoor and outdoor ends in real time and returns the pressure difference to the residual pressure monitoring equipment. When the pressure difference exceeds the value set by the residual pressure monitoring equipment, the residual pressure monitor lights up the monitoring light of the residual pressure detector; When the pressure difference between the two ends of the residual pressure detector returns to normal, the residual pressure monitor returns to its normal monitoring state;
3. JK-Y793 residual pressure detector has LCD and can display pressure values on site.

Usage environment:	Temperature:- 10°C~+50℃； Humidity: ≤95% RH (40C, no condensation)
Working voltage:	24V pulsating voltage
Working current:	Monitoring current ≤1.5mA
Measurement accuracy:	1Pa
Regulatory lights:	Red, flashing during inspection, constantly on when reporting an alarm
Range:	-127 Pa~+127 Pa
Bus length:	≤1500m (cross-sectional area ≥ 1.0mm² twisted pair)
Shell protection level:	IP30
External dimensions:	Length 96mm x Width 96mm x Height 38mm (including base)

1. Electronic code, unique 1D; Controller online addressing or encoder address setting, powerful debugging function.
2. Connected to the bus of the JK-Y790 residual pressure monitor produced by our company, the relay action is controlled by the built-in microprocessor of the controller to control the opening angle of the electric actuator, and can also receive feedback signals of the open and closed positions.
3. Can receive commands from the monitor to start/stop the electric actuator< 4. Fault detection of the control line that can open or close the actuator, and the feedback line that can be closed or opened in position;

Environmental temperature for use:	0°C~+55°C； Humidity: ≤95% RH (non condensing)
Working voltage:	Bus: 24V pulsating voltage; Power supply: DC24V ± 15%
Bus operating current:	Monitoring current ≤1.8mA
	Output each action with an increased current of ≤2mA per circuit
	Input an increase in current of ≤0.6mA per action
	Illuminate the fault light and increase the current by ≤0.6mA
Line system:	Two buses (non-polar), DC24V power cord (polarized)
Bus length:	≤1500m (cross-sectional area 1.0mm² copper twisted pair)
Start light:	Red, lights up when the relay is activated
Feedback light:	Red, lights up after detecting the input action signal
Fault light:	Yellow, lights up after detecting a fault signal
External dimensions:	Length 90mm x Width 90mm x Height 41mm (including base)

The JK-Y796 fire electric device (fire emergency evacuation pressure relief actuator) is specifically designed to control the opening and closing angle of the bypass pressure relief valve in the positive pressure air supply system, receive commands from the residual pressure controller to maintain the residual pressure value within the set standard range, and use 24V power supply.

Environmental temperature for use:	-10℃-+50℃； Humidity: ≤ 95% RH (40℃, no condensation)
Shaft torque:	15Nm
Rated voltage:	DC 24V
Power:	7W
Running time:	50S(0-900)
Signal output:	Turn on and off signals
External dimensions:	Length 142mm x Width 86mm x Height 68mm

JK-Y795 fire emergency evacuation residual pressure detector (this model is a direct pressure residual pressure detector, which does not require pipe penetration during installation, hereinafter referred to as the direct pressure detector) is a high-precision product specially developed for pressure difference control of smoke control systems (front rooms, stairwells). This product uses direct collection of atmospheric pressure for relevant measurements; There is a red regulatory indicator light on the panel; Adopting a two-wire system (non-polar), powered by 24V pulsating voltage; The external dimensions of the product are 96mm * 96mm * 38mm. Electronic code, unique ID address, can be set online through residual pressure monitoring equipment.

Usage environment:	Temperature:-5°C~+50℃； Humidity: 95% RH (40C, no condensation)
Working voltage:	24V pulsating voltage
Working current:	DC 24V
Loop wiring system:	Monitor current 1mA
Regulatory lights:	Red, flashing during inspection, constantly on when reporting an alarm
Range:	-127Pa~+127Pa
Bus length:	≤1500m (cross-sectional area 1.0mm² steel twisted pair)
External dimensions:	Length 96mm x Width 96mm x Height 38mm (including base)

When a building is hit by a fire, smoke proof staircases, front rooms, and refuge floors are life passages for personnel evacuation and passages for firefighters to extinguish fires, and must ensure high requirements for their smoke proof performance.
Ensure that the residual pressure in the evacuation route is effectively controlled during a fire, in order to prevent the spread of smoke and make it easier for survivors to open the fire prevention measures.
The "Evacuation Channel Residual Pressure Monitoring System" designed and developed by our company can perform 24-hour real-time automatic inspections and provide real-time alarm notifications for abnormal residual pressure. Strictly based on the national standards GB50016-2014 "Code for Fire Protection Design of Buildings" and GB51251-2017 "Technical Standards for Building Smoke Control and Exhaust Systems".

Number of monitoring circuits：	4 circuits
Total capacity of a single circuit：	200 points
Loop line system：	The monitor and controller, as well as the controller and residual pressure sensor, are connected via a two bus with no polarity signal.
External dimensions：	469mm*350mm*110mm
main power supply：	AC220V (2 sealed lead-acid batteries, single battery DC12V/4.5AH)
Usage environment：	Temperature: -10 ℃~+50 ℃; Relative humidity ≤ 95%, no condensation
Execution standards：	GB4717-2005
Installation method：	Wall Mount

Fully comply with the national standard "Technical Specification for Building Smoke Control System";
Paired with residual pressure controllers, residual pressure sensors, and pressure relief valve actuators, it facilitates the flexible construction of a high-capacity evacuation channel residual pressure monitoring system;
The residual pressure monitor can be used to monitor the changes in residual pressure in evacuation routes, adapting to the complex and ever-changing requirements of modern buildings; Non polarized two bus networking, ultra long networking distance;
Adopting LCD screen display, user-friendly file operation interface, easy installation and debugging;
Equipped with main and backup power monitoring functions, and capable of automatic switching;

Number of monitoring circuits for different models：	One circuit can monitor 200 residual pressure controllers, and the residual pressure controller can monitor 64 residual pressure sensors.
Loop line system：	The monitor and controller, as well as the controller and residual pressure sensor, are connected using a non-polar signal two bus connection.
External dimensions：	469mm*350mm*110mm
main power supply：	AC220V (2 sealed lead-acid batteries, single battery DC12V/4.5AH)
Usage environment：	Temperature: -10 ℃~+50 ℃; Relative humidity ≤ 95%, no condensation
Execution standards：	GB4717-2005
Installation method：	Wall Mount

The residual pressure controller is used as a bus control interface and can control the start and stop of the on-site machine pressure relief valve;
The signal of the pressure relief valve equipment can be fed back to the residual pressure monitor of the evacuation channel in the fire room;
Electronic encoding allows for on-site address rewriting using a handheld encoder;
The signal processing is implemented using a microprocessor, and digital signals are used to communicate with the monitor. The communication is stable and reliable, and the wiring terminals are explained.

working voltage ：	AC220V/50HZ
Input power：	24W
output current：	1A
Bus communication method：	Bus system, tree connection
communication line：	NH-RVS-2*2.5mm2
Communication distance：	≤ 1000m, exceeding can be extended through repeater extension
ambient temperature：	0℃~40°C
ambient humidity：	Relative temperature ≤ 95%, no condensation
altitude：	≤2500m
External dimensions：	159mm*95mm*56mm
Installation method：	Rail mounted installation
Adjustment method of pressure relief valve：	PID infinite control
Installation position:：	Inside or next to the fan control cabinet
Product advantages：	Suitable for new projects, dual bus system, low material and construction costs

The residual pressure controller is used for bus control interface and can control the start and stop of the on-site fan pressure relief valve. It can feedback the signal of the pressure relief valve equipment action back to the evacuation channel residual pressure monitor in the fire room;
Electronic encoding, which can be rewritten on-site using a handheld encoder;
The signal processing is implemented using a microprocessor, and digital signals are used to communicate with the monitor. The communication is stable and reliable, and the wiring terminals are specified.

Working voltage：	AC220V/50HZ
Input power：	24W
Output current：	1A
Bus communication method：	Bus system, tree connection
Communication line：	NH-RVS-2*2.5mm2
Communication distance：	≤ 1000m, exceeding can be extended through repeater extension
Environmental temperature：	0°℃~40°C
ambient humidity：	Relative temperature ≤ 95%, no condensation
Altitude：	≤2500m
External dimensions：	159mm*95mm*56mm
Installation method：	Rail mounted installation
64 residual pressure sensors that can be loaded
Adjustment method of pressure relief valve：	PID infinite control
Installation location:：	Inside or next to the fan control cabinet
Product advantages：	Suitable for new construction or renovation projects, the host can be selected, and the residual pressure controller of different models has display and control functions.
